XXII Carat Club Villas - Floor Plans

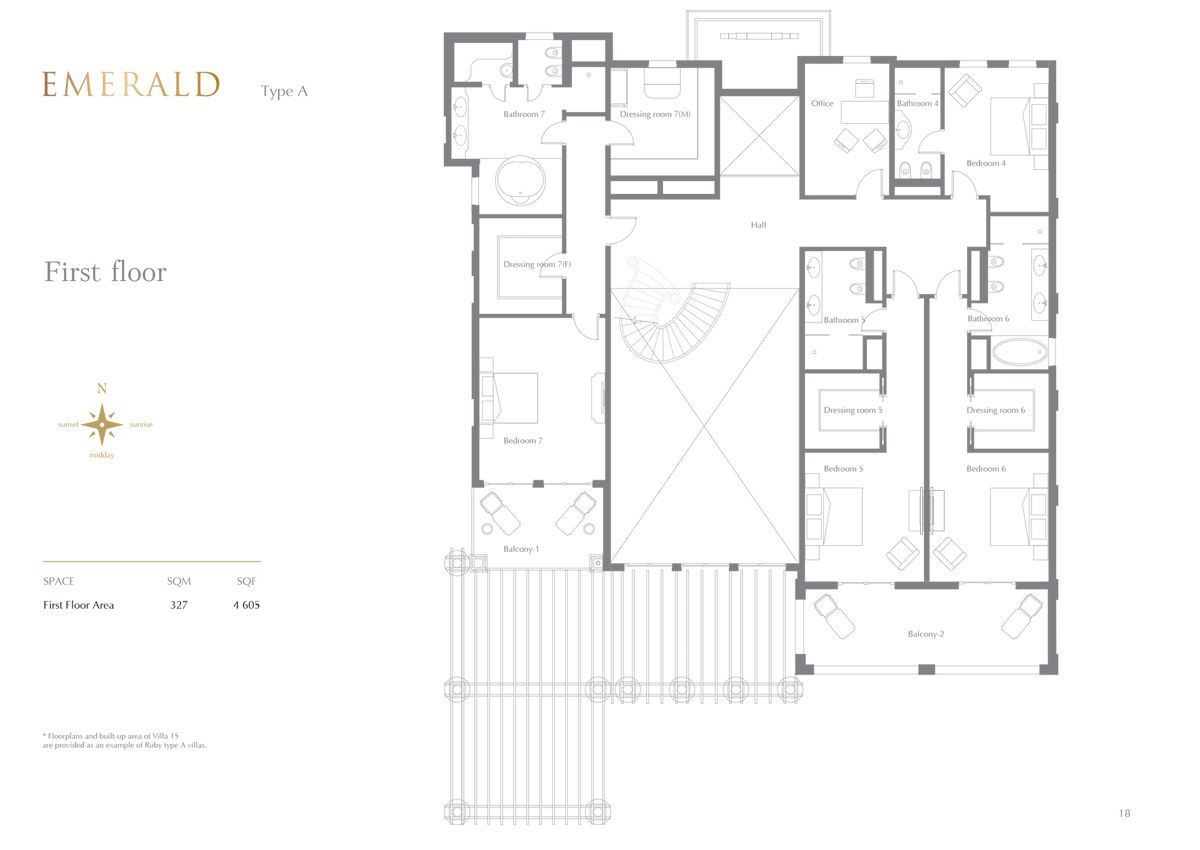

Emerald Type A

7 Bedroom 1st Floor, Size 4605 Sq.Ft

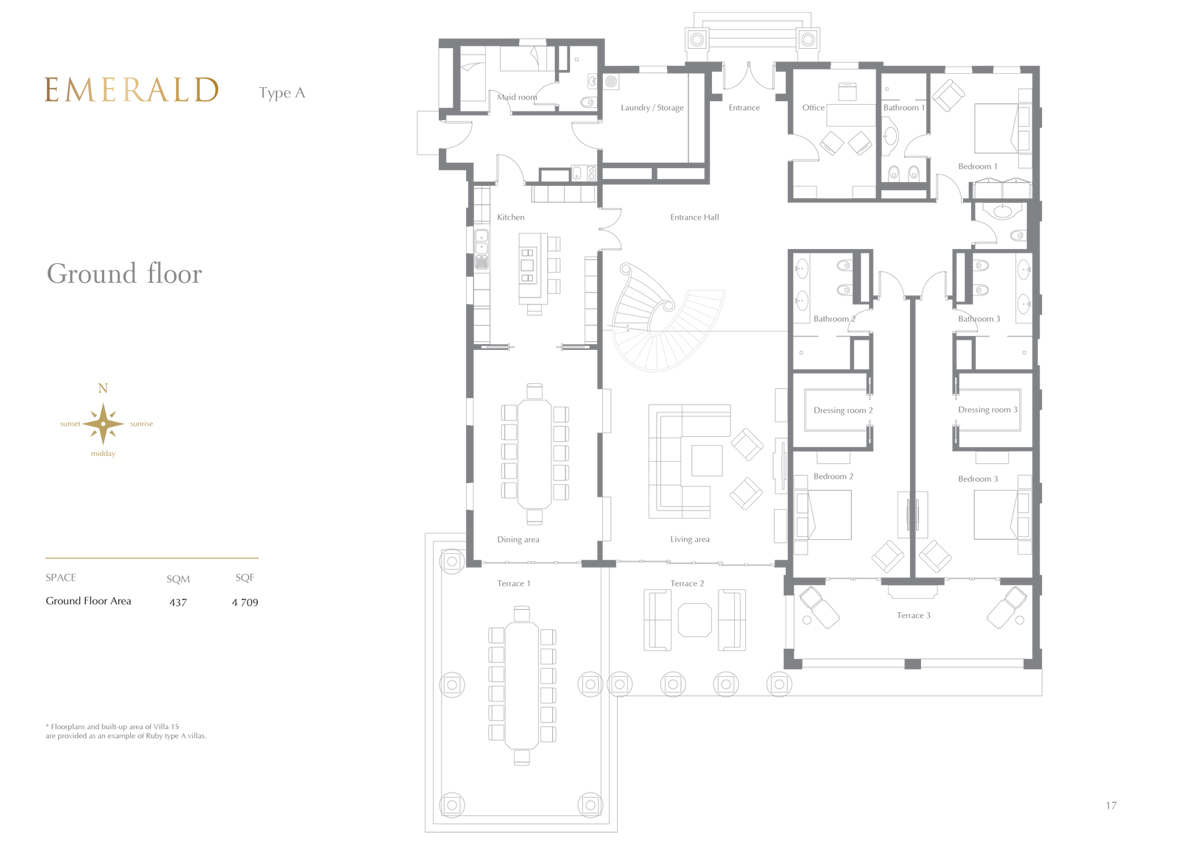

Emerald Type A

7 Bedroom Ground Floor, Size 4709 Sq.Ft

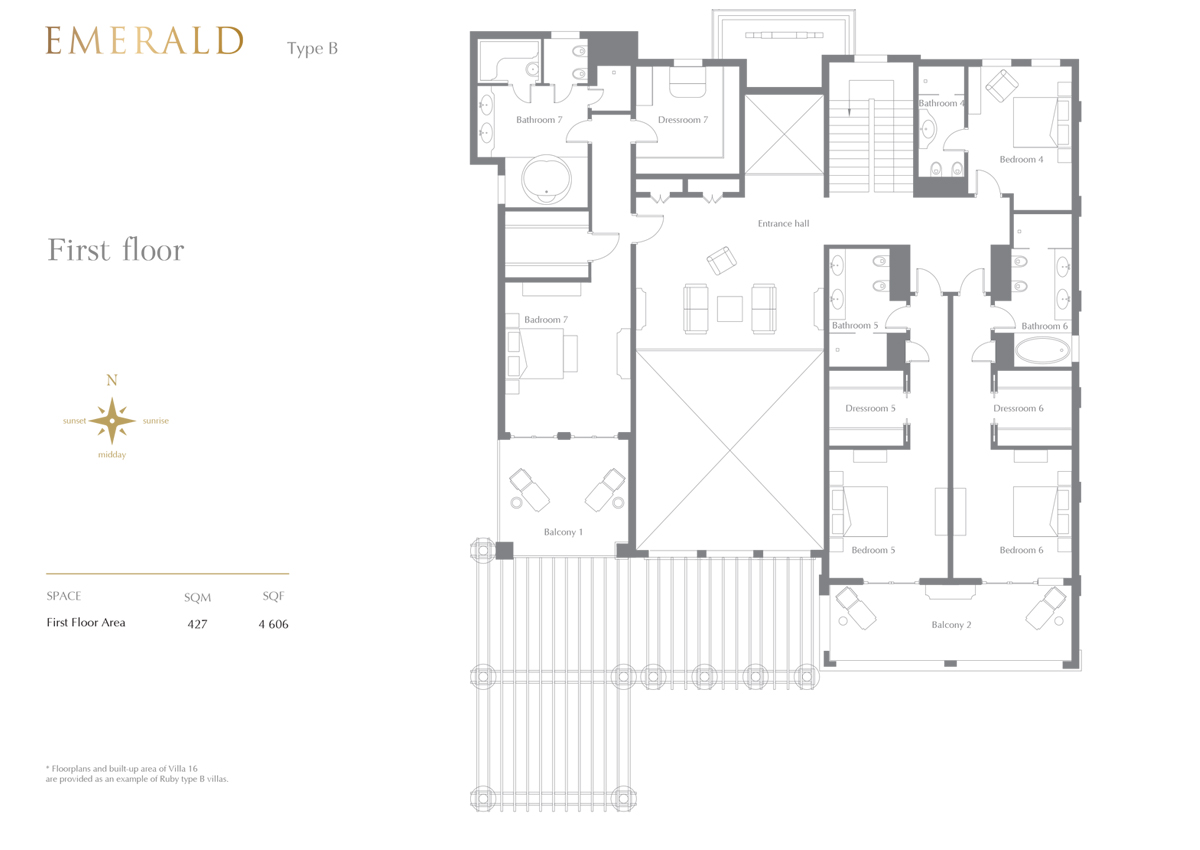

Emerald Type B

7 Bedroom 1st Floor, Size 4606 Sq.Ft

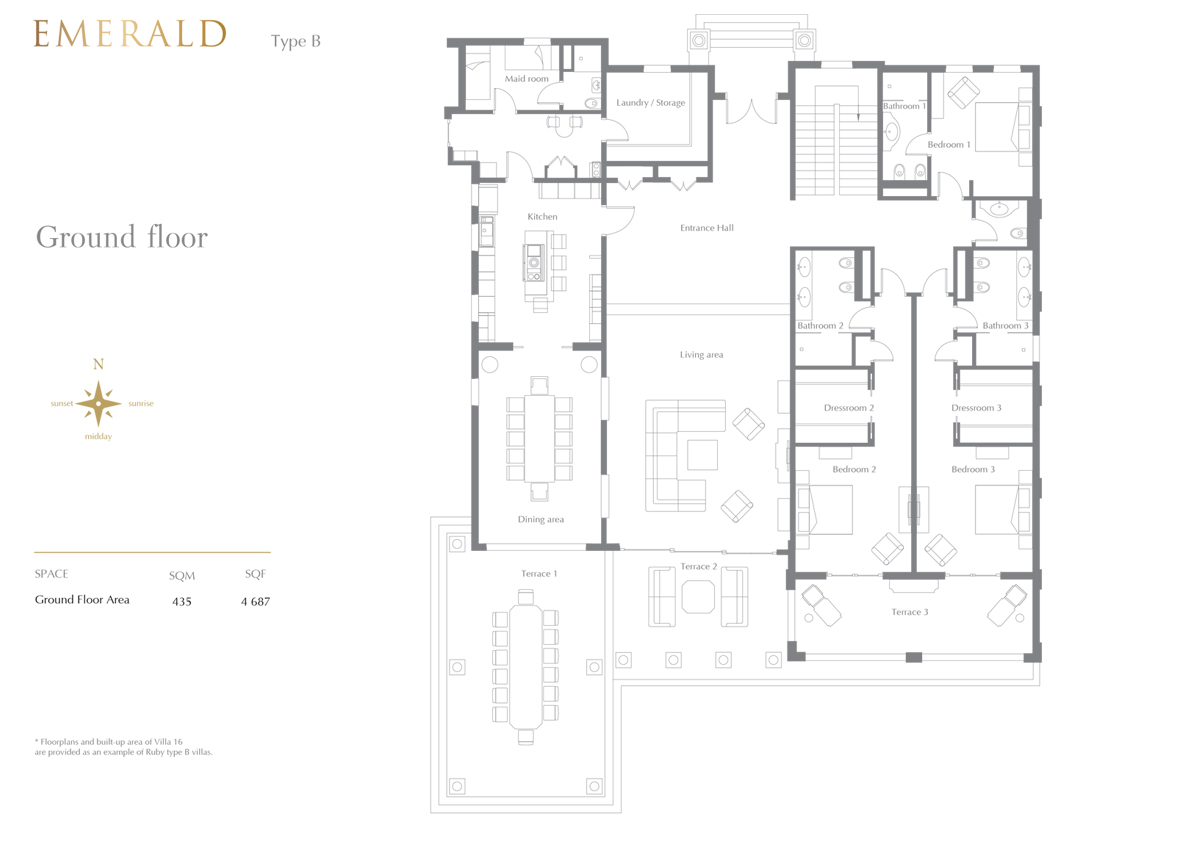

Emerald Type B

7 Bedroom Ground Floor, Size 4687 Sq.Ft

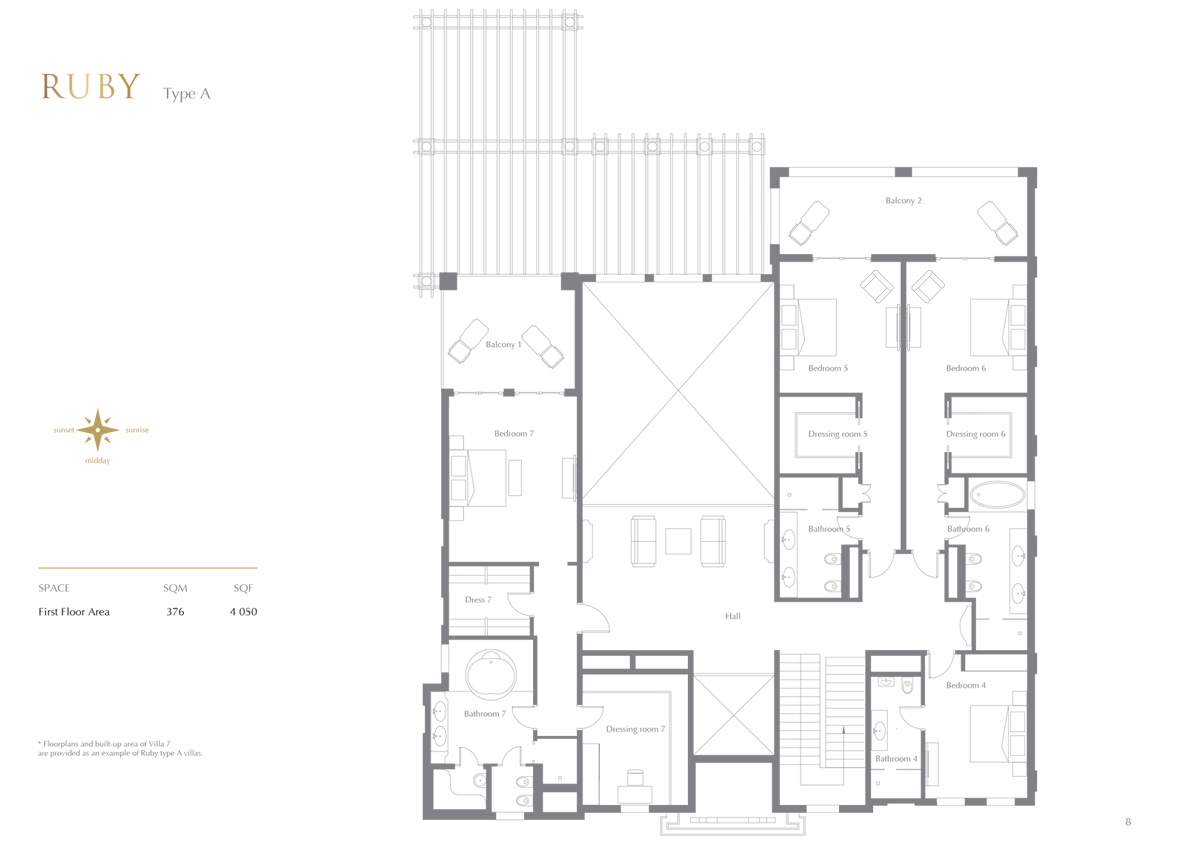

Ruby Type A

7 Bedroom 1st Floor, Size 4050 Sq.Ft

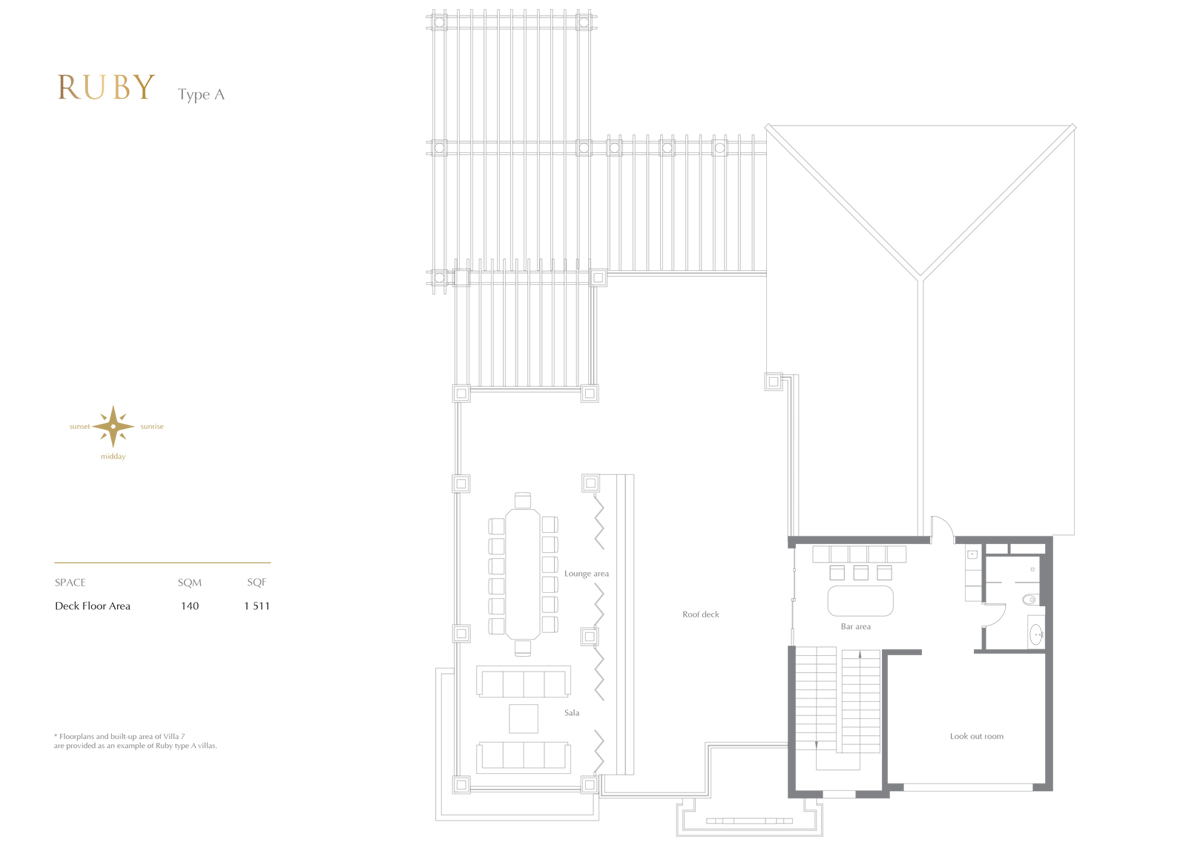

Ruby Type A

7 Bedroom Deck Floor, Size 1511 Sq.Ft

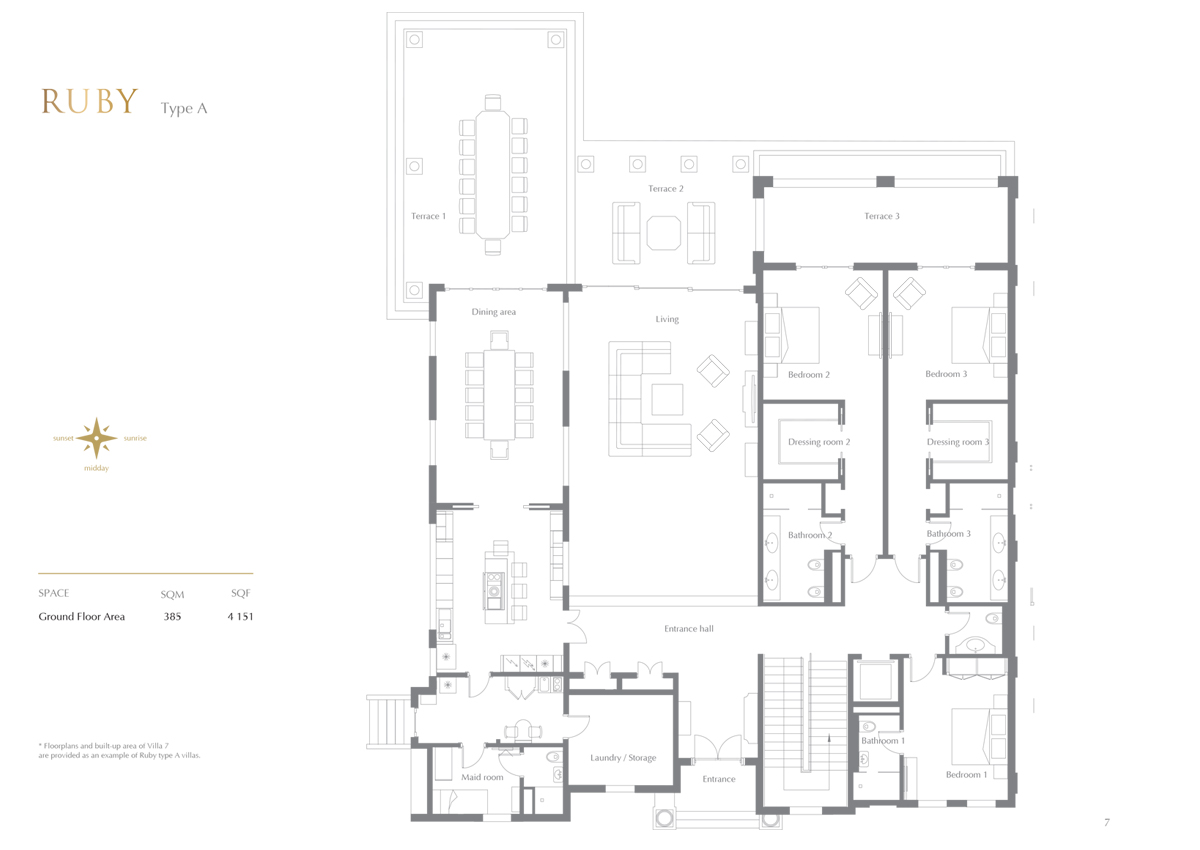

Ruby Type A

7 Bedroom Ground Floor, Size 4151 Sq.Ft

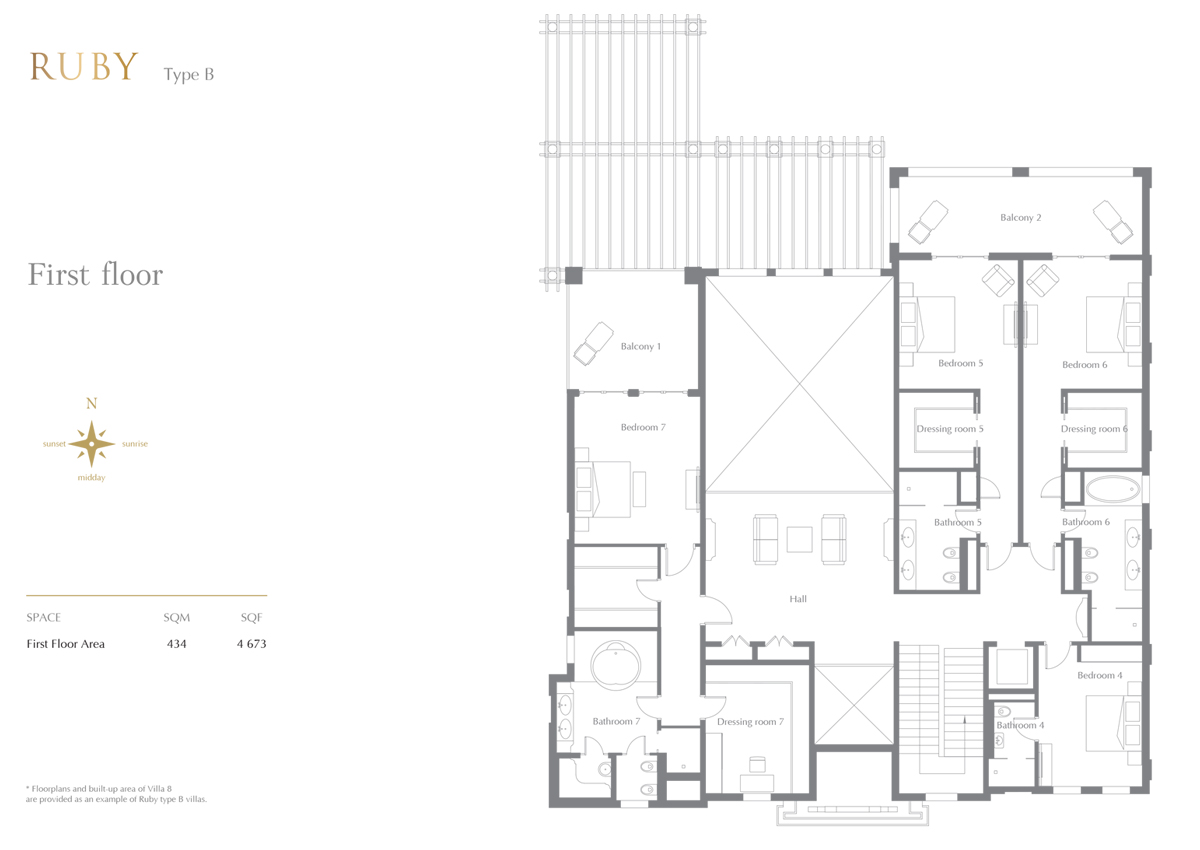

Ruby Type B

7 Bedroom 1st Floor, Size 4673 Sq.Ft

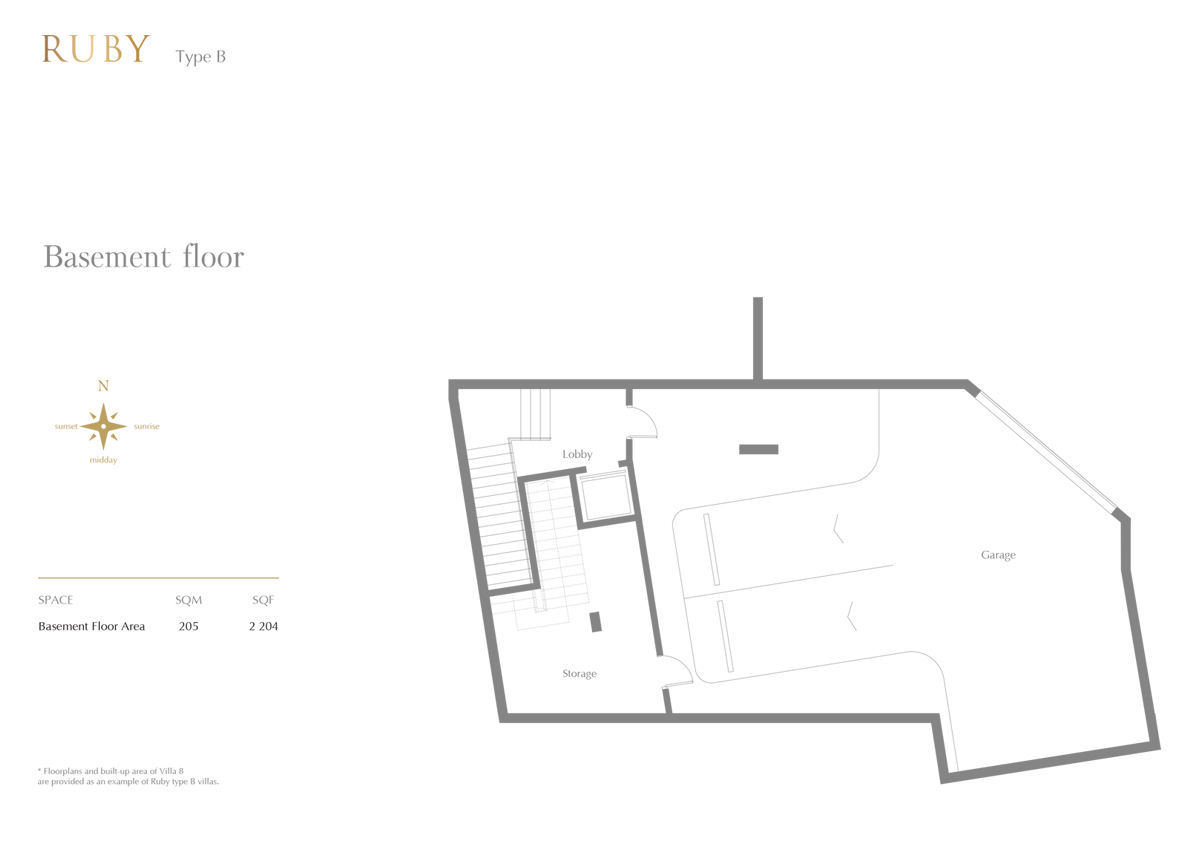

Ruby Type B

7 Bedroom Basement Floor, Size 2204 Sq.Ft

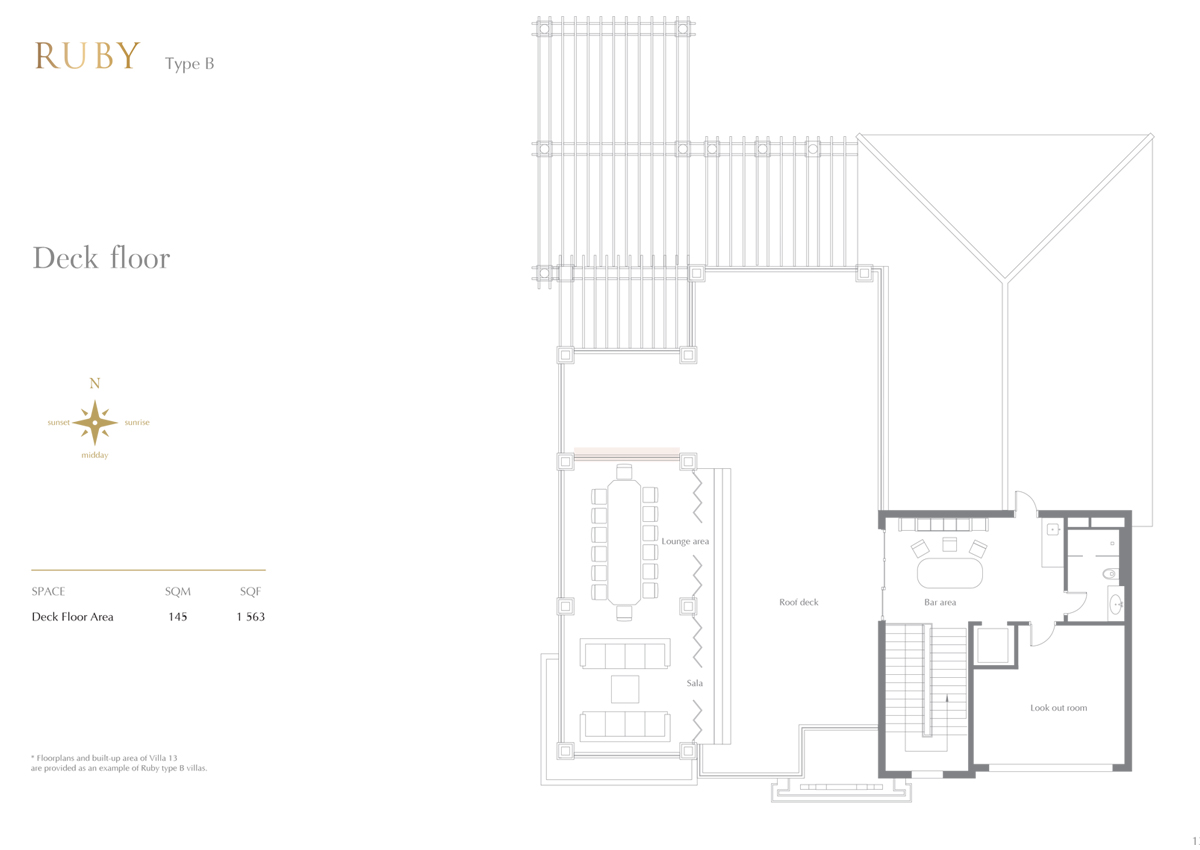

Ruby Type B

7 Bedroom Deck, Size 1563 Sq.Ft

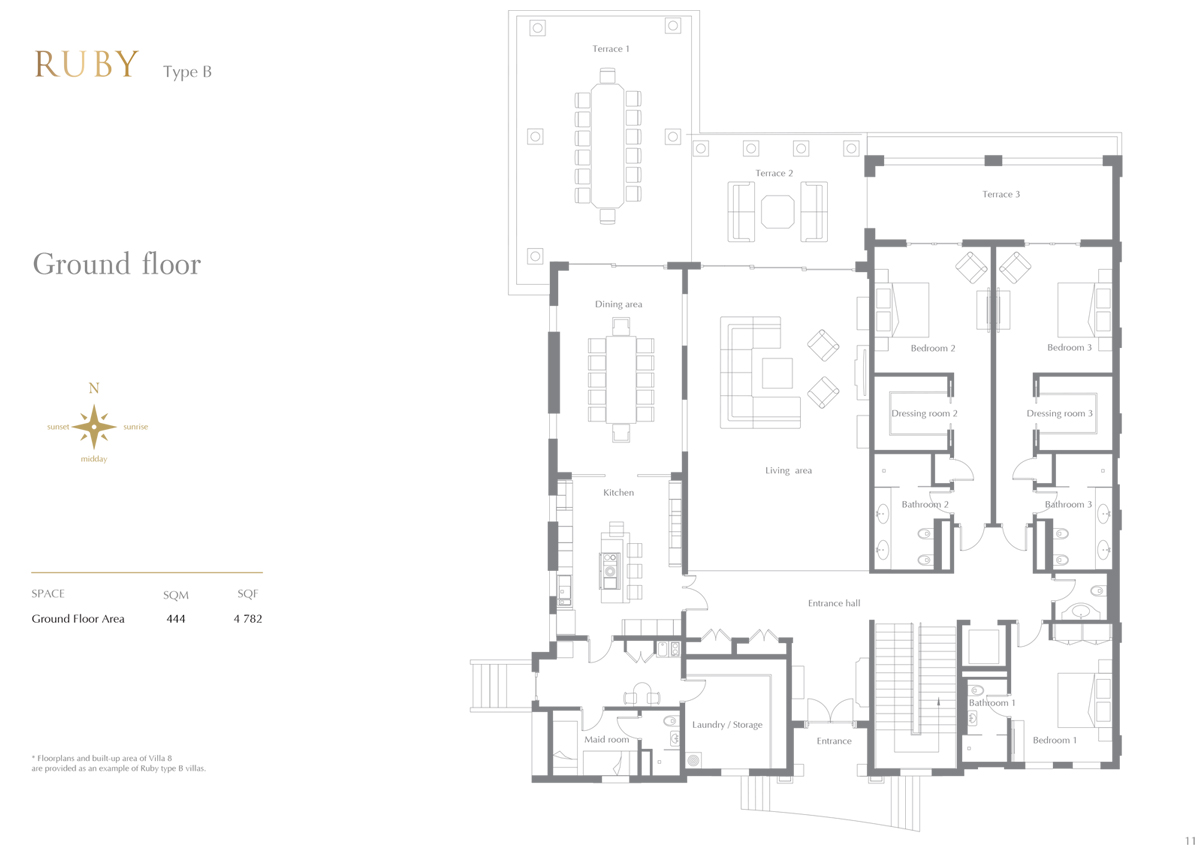

Ruby Type B

7 Bedroom Ground Floor, Size 4782 Sq.Ft

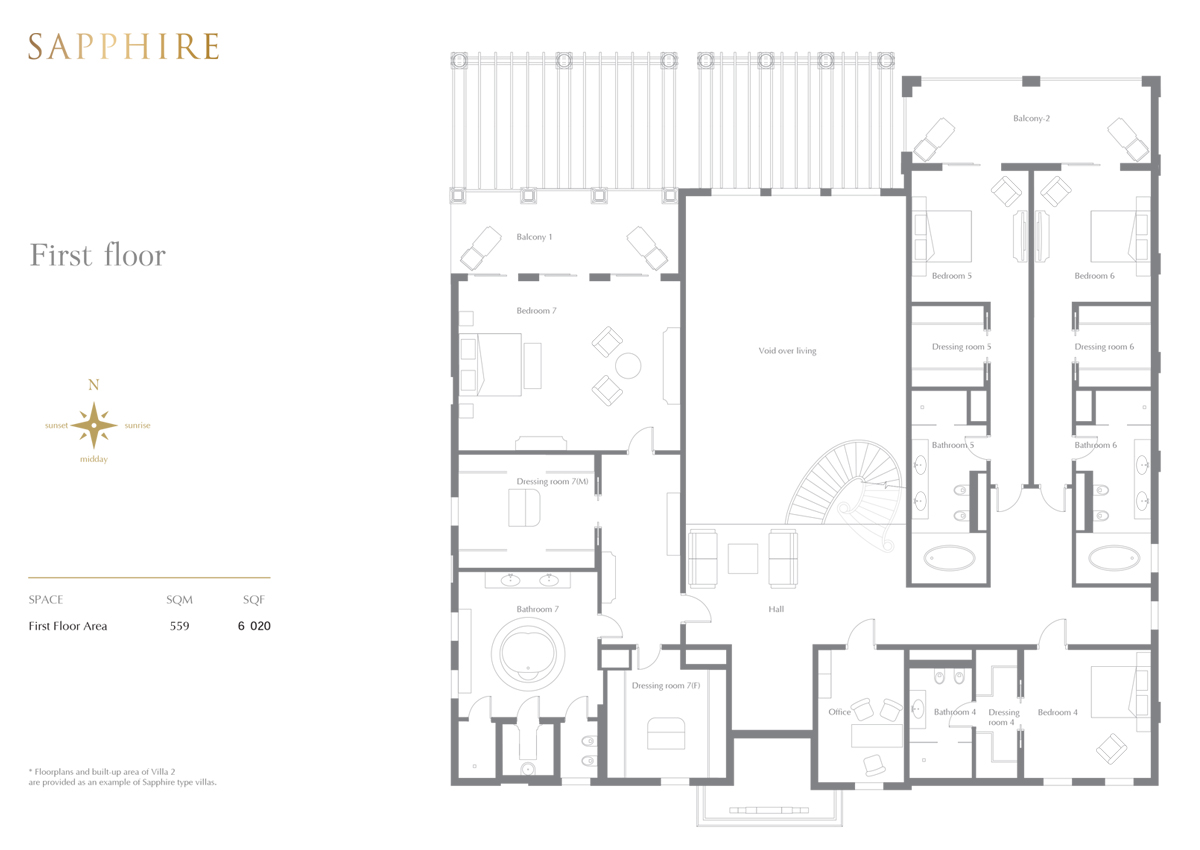

Sapphire

7 Bedroom 1st Floor, Size 6020 Sq.Ft

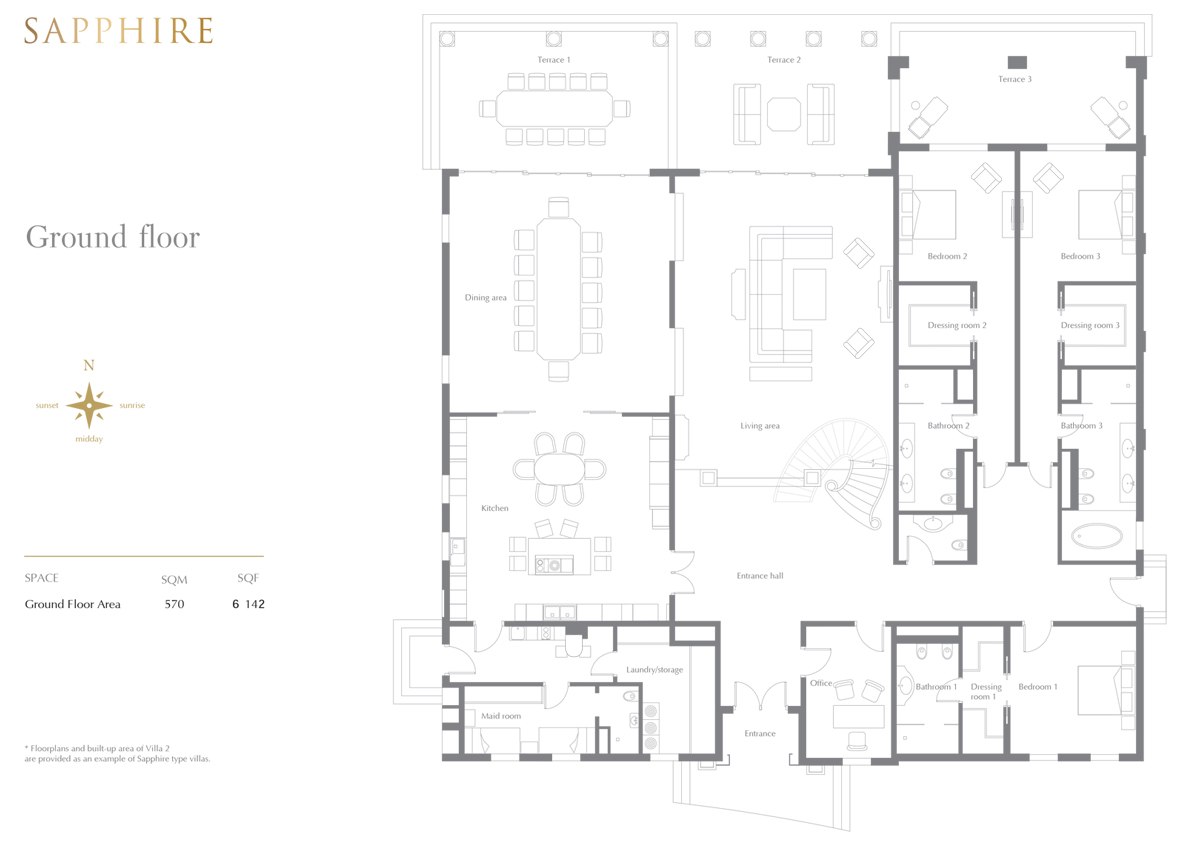

Sapphire

7 Bedroom Ground Floor, Size 6142 Sq.Ft

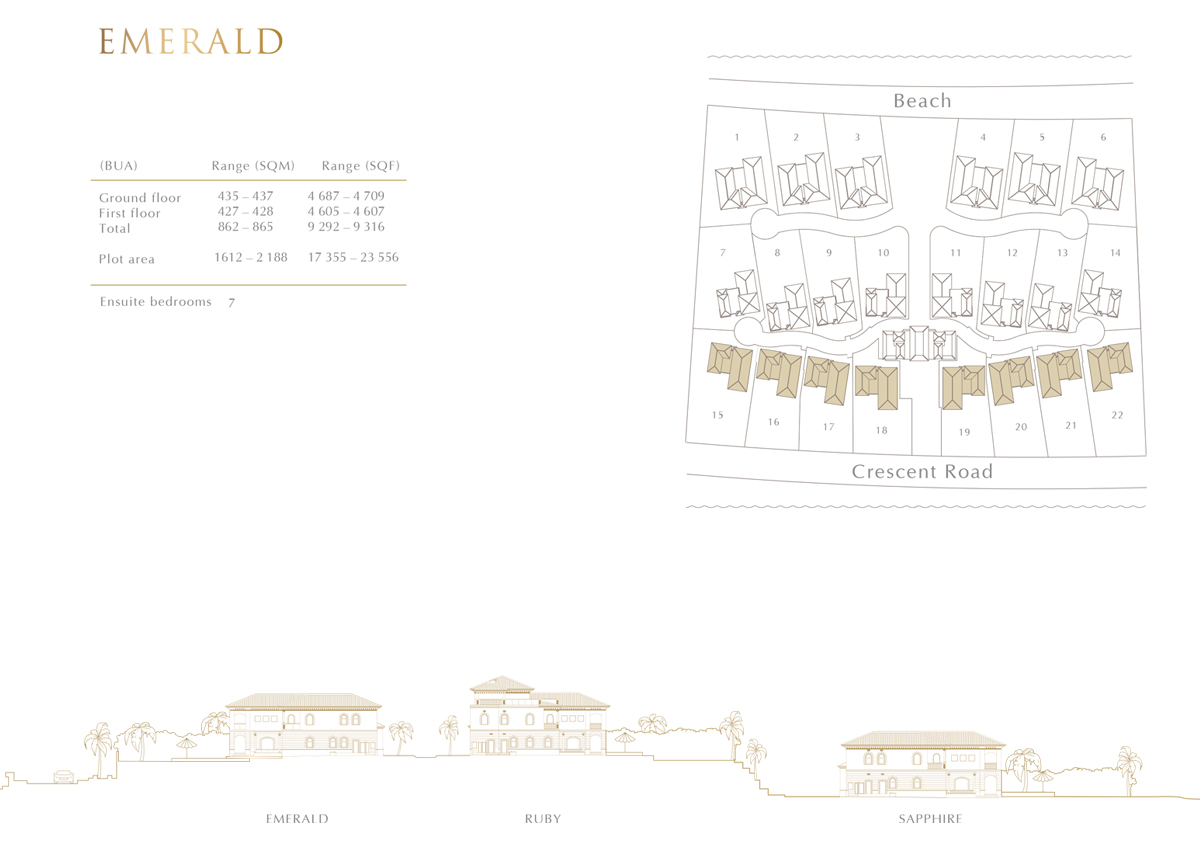

Emerald

Typical Layout 7 Bedroom Villas

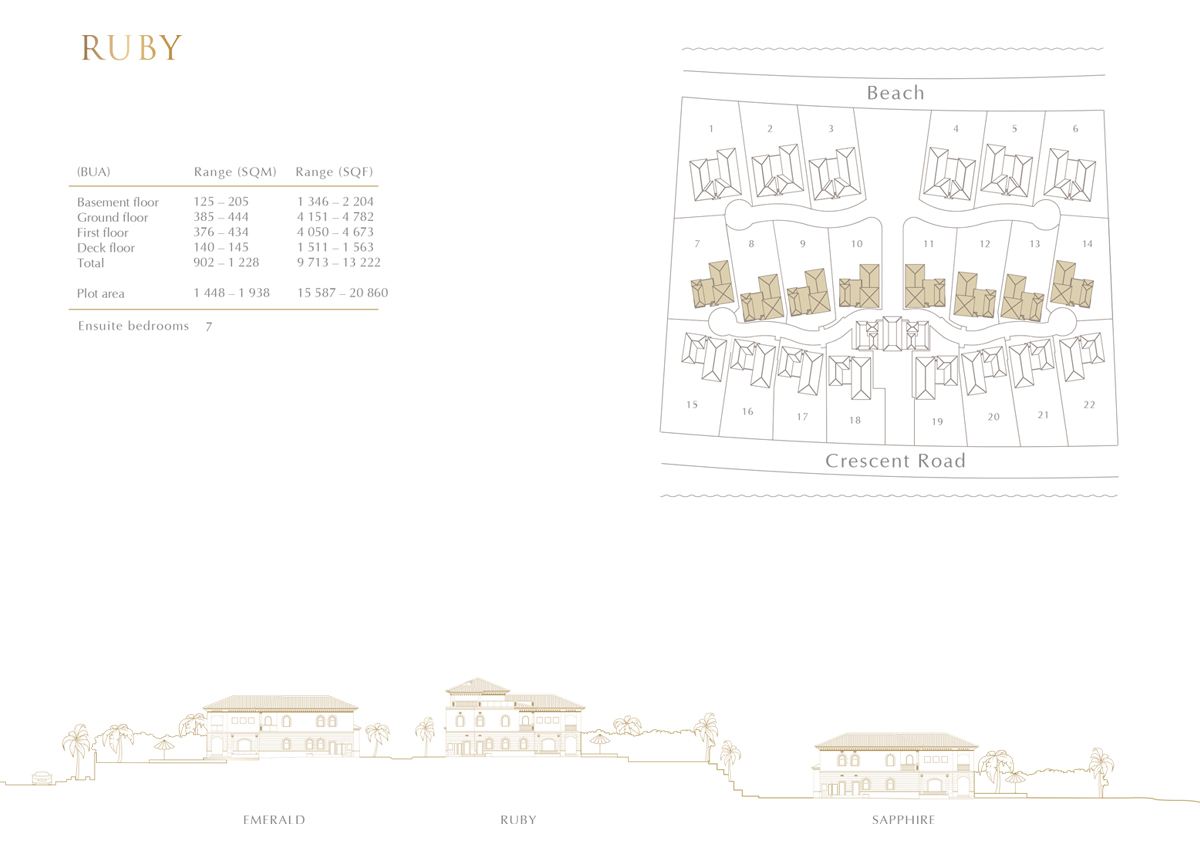

Ruby

Typical Layout Plan

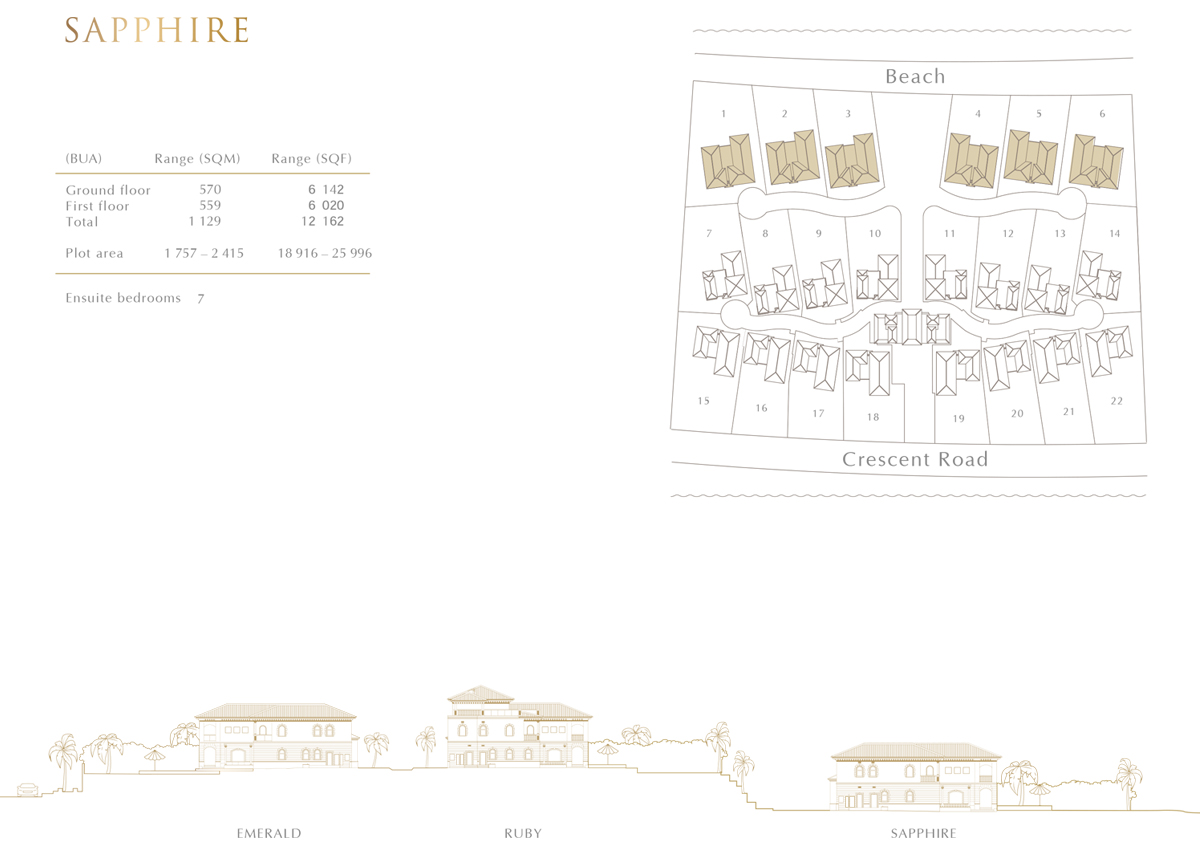

Sapphire

Typical Layout Plan
